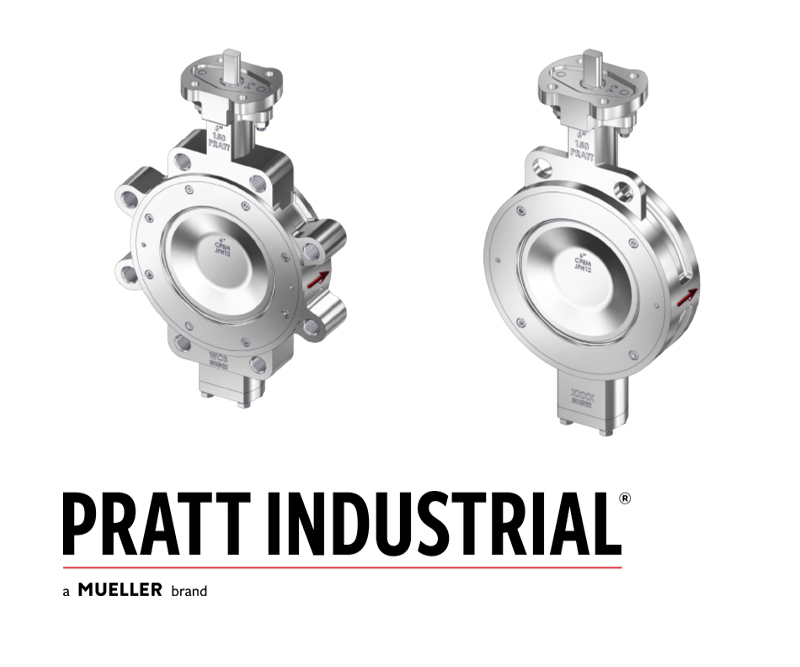

HE Series High Performance Butterfly Valve

The HE Series High Performance Butterfly Valve is designed to deliver reliable shutoff and long-lasting performance in demanding industrial applications. Available in 2″ to 12″ sizes with Class 150 and 300 pressure ratings, it offers durable construction, dependable sealing, and smooth operation for a wide range of process systems.

Request a Quote

Features

Features:

• Double offset disc & shaft
• Blowout proof shaft design
• Bi-Directional (Soft Seat only)
• Dead End & Double Dead End Service (Lug Type only) • Spherical Sealing Surface with Live Loaded Springwire

Optional Features:

• Live loaded packing • O2 Cleaning
• Bonnet extension
• Oil free cleaning
• Anti static
• Customized option designs are available upon request

Sizes: 2” through 12”

Body: WCB A-216 Carbon Steel, CF8M A351 Stainless Steel Disc: CF8M A351 Stainless Steel

Stem: 17-4 PH Stainless Steel

Seat: RMTFE

Bearing Material: 316 Impregnated with RTFE

Packing Material: PTFE Cup & Cone

Actuation Options: Worm Gear, Lever, Pneumatic, Electric

Pressure Ratings: CL 150 – 2” – 12”, CL 300 – 2”-12”
