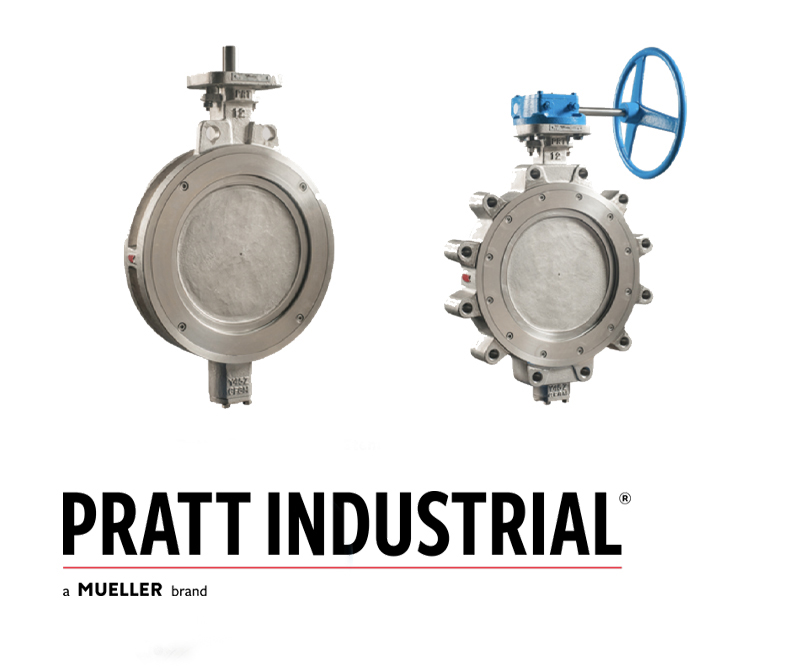

HP Series High Performance Double Offset Butterfly Valve

HP Series Butterfly Valves – 2″ to 72″

Designed for high-performance industrial service, the HP Series Double Offset Butterfly Valve provides dependable shutoff, low operating torque, and long-lasting durability in demanding applications. Available in multiple sizes, body styles, and pressure classes to meet a wide range of process requirements.

Request a Quote

Features

SIZES 2″ THROUGH 72″ (2″ – 72″: ANSI 150; 2″ – 48″ ANSI 300; 3″ – 24″ ANSI 600)

Wafer Type Butterfly Valve – Bare Stem

Features:

Double offset disc & shaft
Blowout proof shaft design
Bi-Directional (soft seat only)
Vacuum rated dead end & double dead end service (lug type only)
Fire safe certified (metal seat and fire safe seat, API 607)
Spherical sealing surface

Sizes: 2″ through 72″

Body: WCB A-216 Carbon Steel, CF8M A351 Stainless Steel

Disc: CF8M A351 Stainless Steel

Stem: 17-4 PH Stainless Steel

Seat: PTFE, RTFE, 316 SS, Inconel, Fire Safe, MTFE

Bearing Material: Graphite Reinforced Teflon, 316 SS

Packing Material: PTFE Cup & Cone, Graphite

Actuation Options: Worm Gear, Lever, Pneumatic, Electric

Pressure Ratings: CL.150 – 2 – 72″; CL. 300 – 2″- 48″; CL.600 – 3″- 24″

Note: Many alloys & seat materials are available to accommodate virtually any service condition.
